PA-7330 In Floor Scissor Lift 3.0T
Product SKU: PA-7330
Phoenix Automotive PA-7330 3 Tonne In Floor Scissor Lift with pneumatic locks and extendable platforms for longer vehicles. Flush mounted with floor to give a clear floor finish.
- Homologated and certified product according to the European Directive EN1493:1998+A1:2008
- Flush mounted in ground design
- Hydraulic synchronization with safety device to avoid unexpected uneven level of platforms
- Mechanical safeties with air operated engagement and release
- Automatic stop at maximum lifting height to protect the lift from over extended lifting
- Automatic safety stop at 400mm height and beeper during the last phase of the descent
- Manual emergency lowering
- Overload valve included
- Lowering speed control valve included
- Platform can be extended up to 1740mm
- "Dead man" operation by 24V push button
- Electric system controlled by a CPU board
- Free maintenance self-lubricating bushings
- Lifting Capacity - 3000 kg
- Max lifting height - 1700mm
- Length of platforms - 1540 - 1740 mm
- Width of platforms - 550 mm
- Free width between platforms - 800 mm
- Overall length - 1540 mm
- Overall width - 1900 mm
- Lifting time - 60 seconds
- Lowering time - 60 seconds
- Compressed air pressure - 6 - 8 bar
- Voltage - 230 V
- Power - 2.2 KW
- Weight - 800kg
Phoenix Automotive PA-7330 Scissor Lift Brochure | |

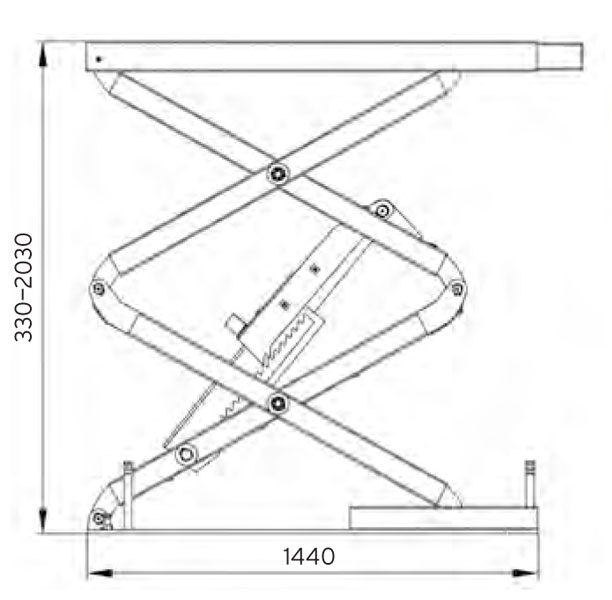

Floor Plan |
