PA-6240TH 2 Post Lift 4.0T
Phoenix Automotive PA-6240TH 4 Tonne clear floor electro-hydraulic 2 post lift with height extensions for vans and 4x4's as standard. Comes standard with Electronic Lock Release System.
Features
- Homologated and certified product according to the European Directive EN1493:1998+A1:2008
- Electro-hydraulic driven lift with chain lifting system
- Synchronization of cylinders independent from load distribution with cable leveling system
- Mechanical safeties in each post with automatic engagement
- Automatic lock release
- Screw up pads
- Voluntary driven control
- Automatic arm locking
- Overload valves / Parachute valves
- Lowering speed control
- Automatic stop at maximum lifting height
- "Dead man" operation by 24V push button
- 1 set of lifting adaptors for extra height
- Vehicle 'anti-crashing' device on upper crossbar

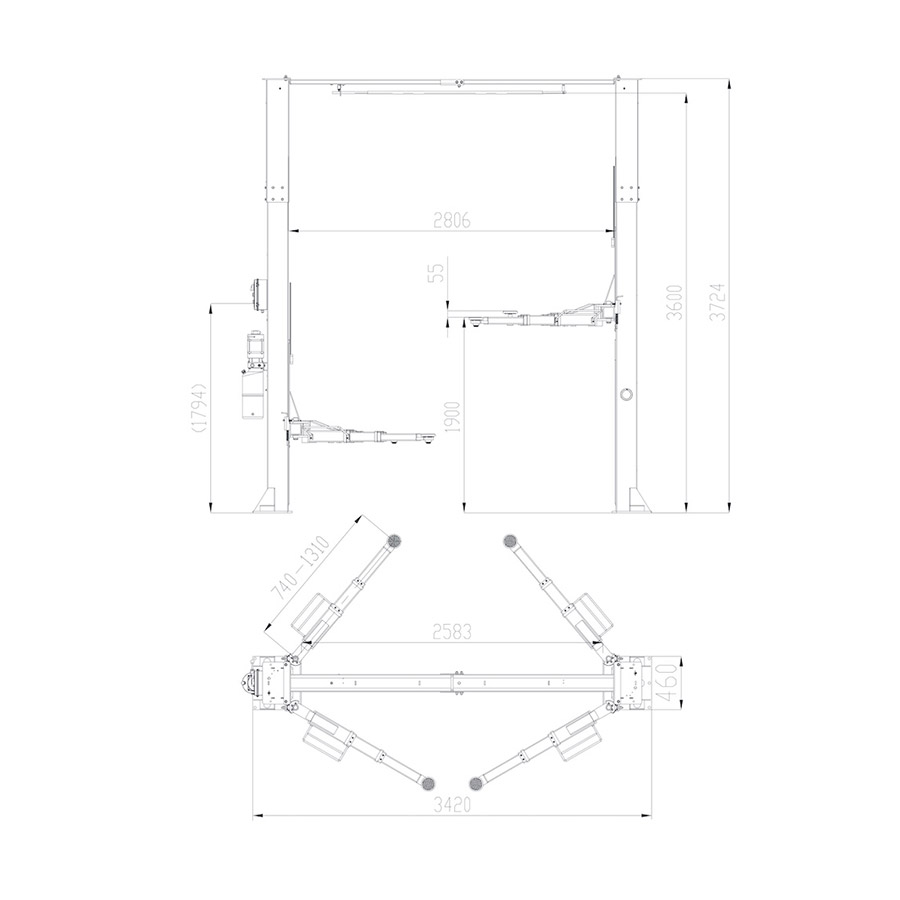

Specifications
- Lifting capacity - 4000kg
- Max lifting height - 1900mm
- Min height - 98mm
- Overall height - 4000mm
- Lifting time - 45 seconds
- Lowering time - 50 seconds
- Electric supply - 230V
- Motor power - 2.2kw Weight 650kg
Downloads
Phoenix Automotive PA-6240TH 2 Post Lift Brochure
