PA-6140 2 Post Lift

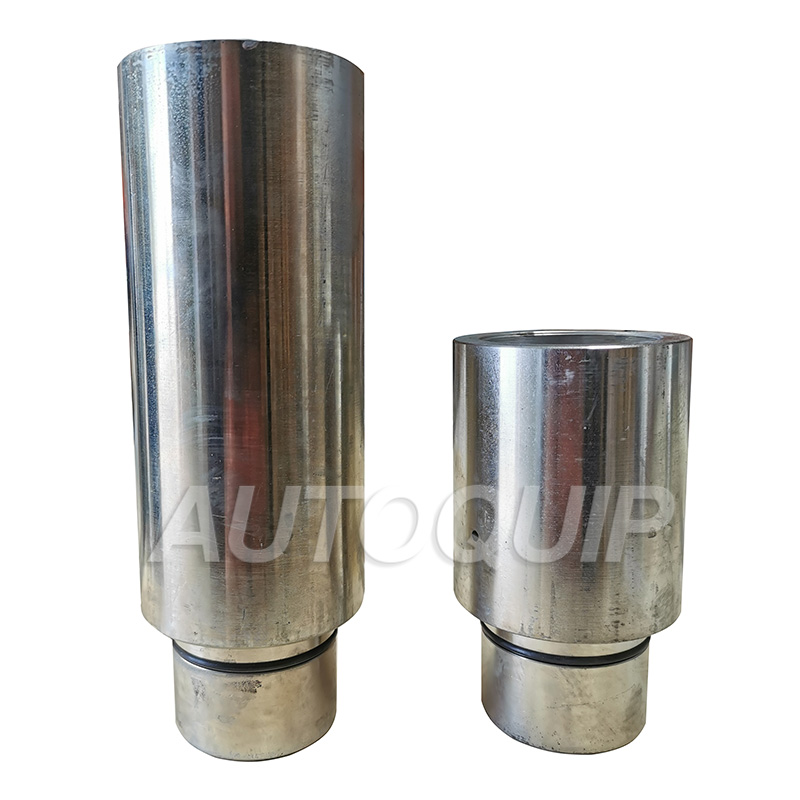

STD-6140 2 Post Lift Height Extensions
STD-6140 2 Post Lift Screw Up Pad

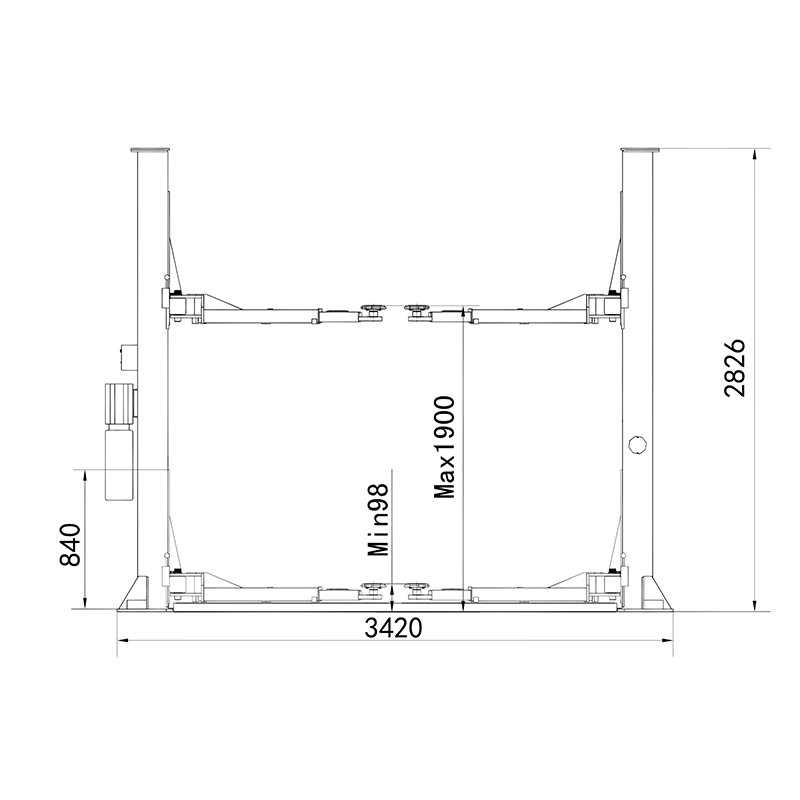

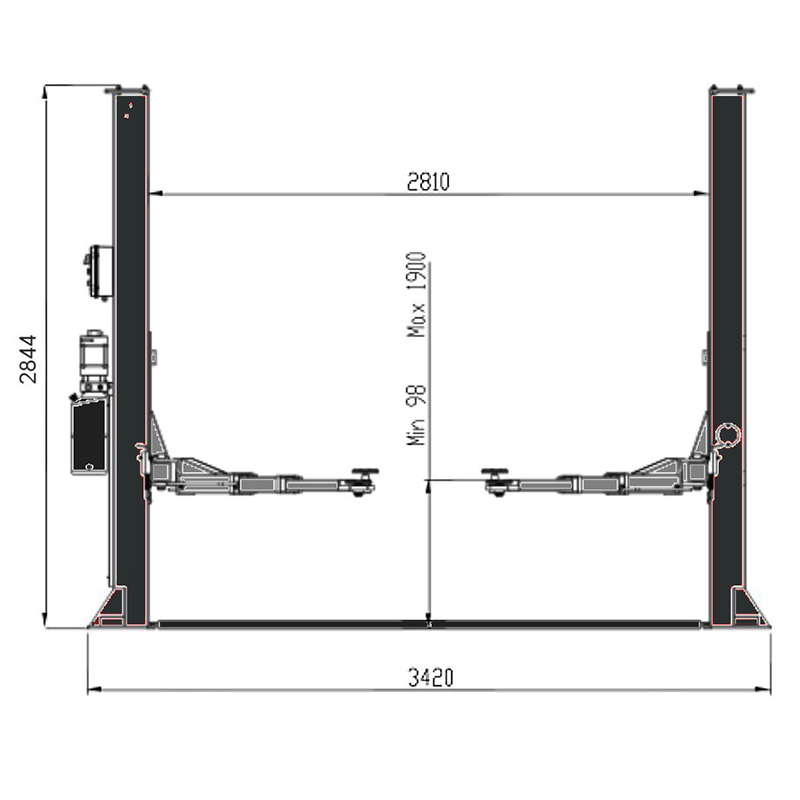

STD-6140 2 Post Lift Dimensions
STD-6140 2 Post Lift Dimensions

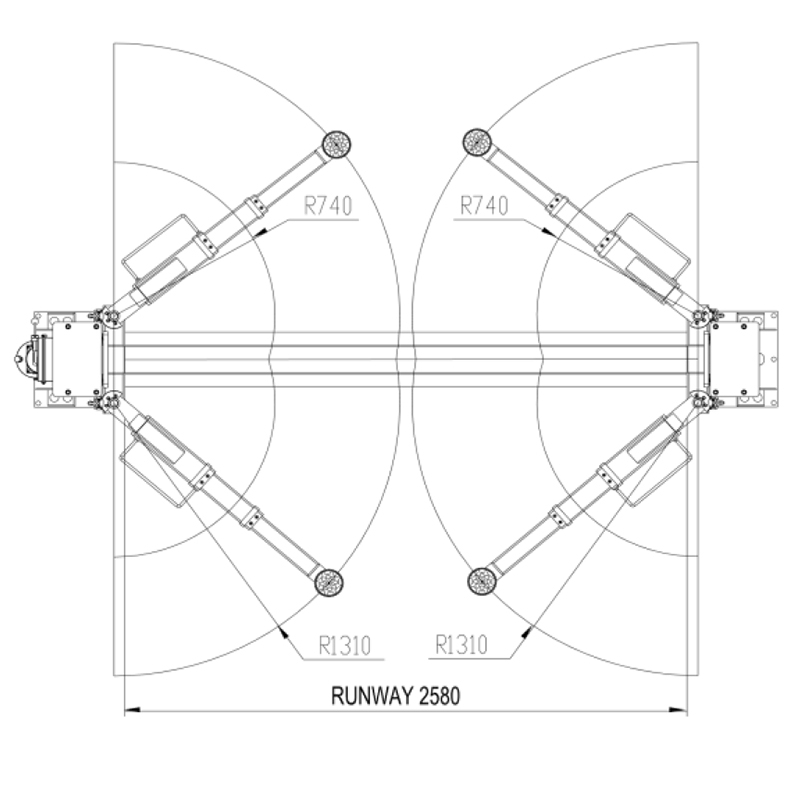

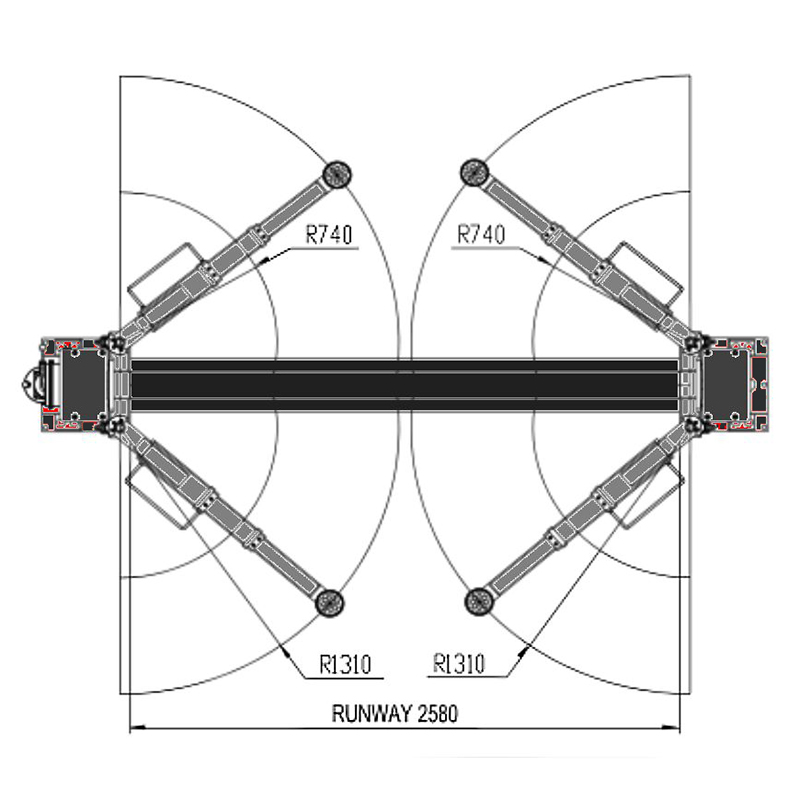

STD-6140 2 Post Lift Floor Plan

PA-6140 2 Post Lift 4.0T

Email
Phoenix Automotive PA-6140 4 Tonne 2 Post Electro-Hydraulic Lift. Comes with height extensions for vans & 4x4's as standard. Available with manual or electronic locking release system.

*** ELECTRONIC LOCK RELEASE VERSION ***

Features

  • Homologated and certified product according to the European Directive EN1493:1998+A1:2008
  • Electro-hydraulic driven lift with chain lifting system
  • Synchronization of cylinders independent from load distribution with cable leveling system
  • Mechanical safeties in each post with automatic engagement
  • Optional : Automatic or Manual safety release
  • Screw up pads
  • Voluntary driven control
  • Automatic arm locking
  • Overload valves / Parachute valves
  • Lowering speed control
  • Automatic stop at maximum lifting height
  • "Dead man" operation by 24V push button
  • 2 sets of lifting adaptors for extra height

Specifications

  • Lifting capacity - 4000kg
  • Max lifting height - 1900mm
  • Min height - 98mm
  • Overall height - 2826mm
  • Lifting time - 45 seconds
  • Lowering time - 50 seconds
  • Electric supply - 230V
  • Motor power - 2.2kw
  • Weight 650kg

Downloads

Phoenix Automotive PA-6140 2 Post Lift Brochure
