Phoenix Automotive PA-7530D Midrise Lift
Phoenix Automotive PA-7530D Midrise Lift

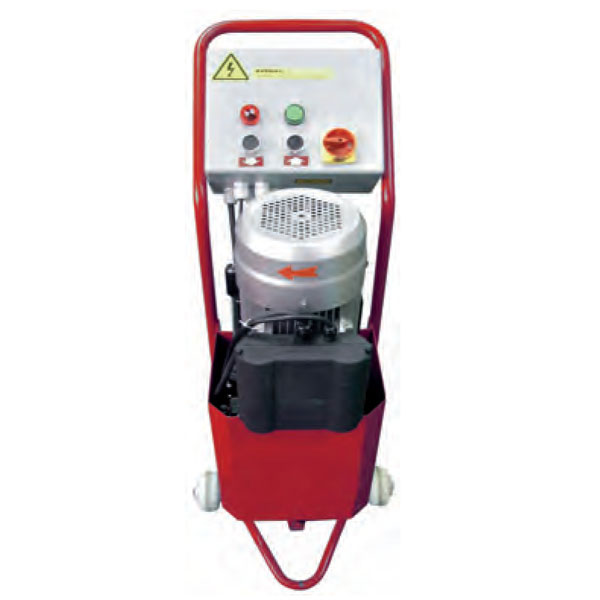

Phoenix Automotive PA-7530D Midrise Lift Power Pack

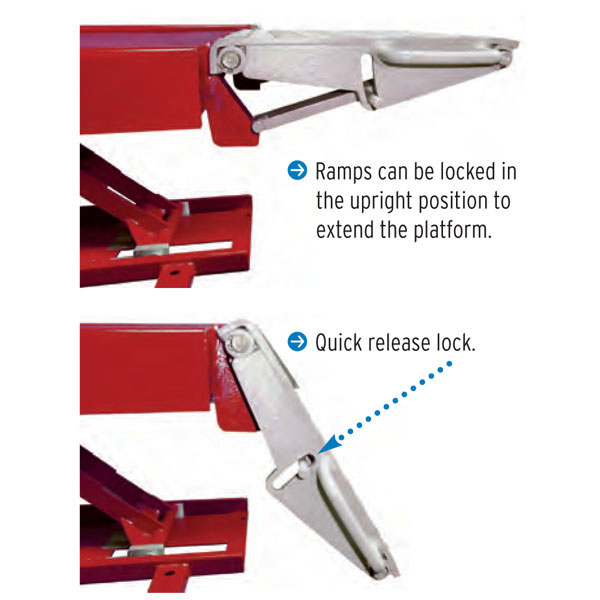

Phoenix Automotive PA-7530D Midrise Lift Extendable Platforms

PA-7530D Midrise Scissor Lift 3.0T

Email

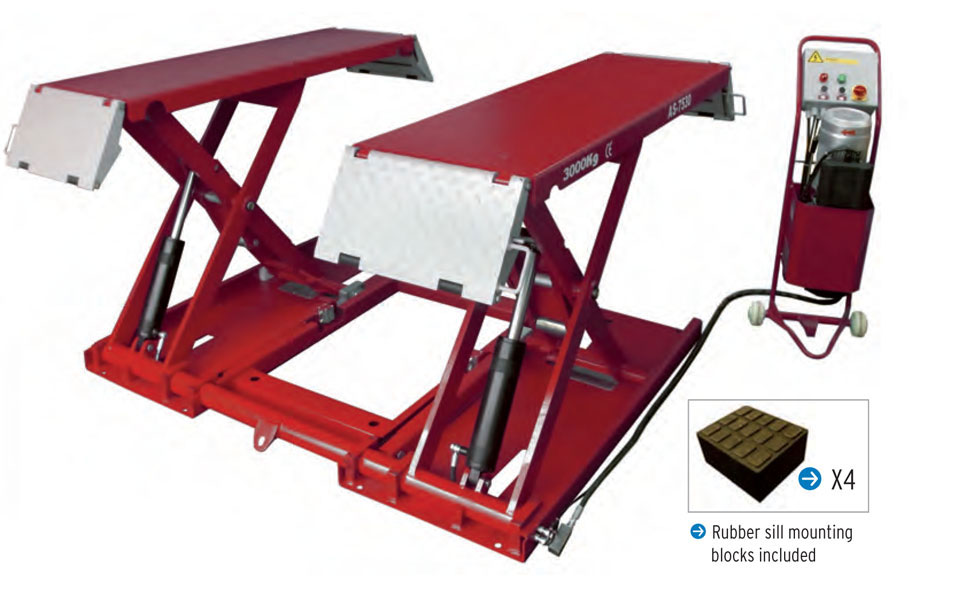

Phoenix Automotive PA-7530D 3 Tonne Midrise Scissor Lift with pneumatic locks and extendable platforms for longer vehicles. Also comes with a mobile kit which allows the lift to be moved in the workshop. Ideal for tyre and body shops.

Please note : This lift is delivered onsite at an extra cost for self-installation.

Features

  • Homologated and certified product according to the European Directive EN1493:1998+A1:2008
  • Super low profile design
  • Electro Hydraulic lift
  • Portable / Moveable with supplied wheel kit as standard
  • Hydraulic synchronisation
  • Manual emergency lowering
  • Parachute valve included
  • Overload valve included
  • Lowering speed control valve included
  • Alarm / buzzer during the final lowering

Specifications

  • Lifting Capacity - 3000 kg
  • Max lifting height - 1000mm
  • Min lifting height - 110mm
  • Length of platforms - 1460 - 1990 mm
  • Width of platforms - 490 mm
  • Free width between platforms - 860 mm
  • Overall length - 1420 - 1990 mm
  • Lifting time - 35 seconds
  • Lowering time - 35 seconds
  • Compressed air pressure - 6 - 8 bar
  • Voltage - 230 V
  • Power - 2.2 KW
  • Weight - 620kg

Downloads

Phoenix Automotive PA-7530D Midrise Scissor Lift Brochure
