PR4000

ProTec PR4000 4 Tonne 2 Post Electro-Hydraulic Lift

*** ELECTRONIC LOCK RELEASE VERSION ***

✅ 4000KG lifting capacity
✅ Electronic lifting and lowering controls

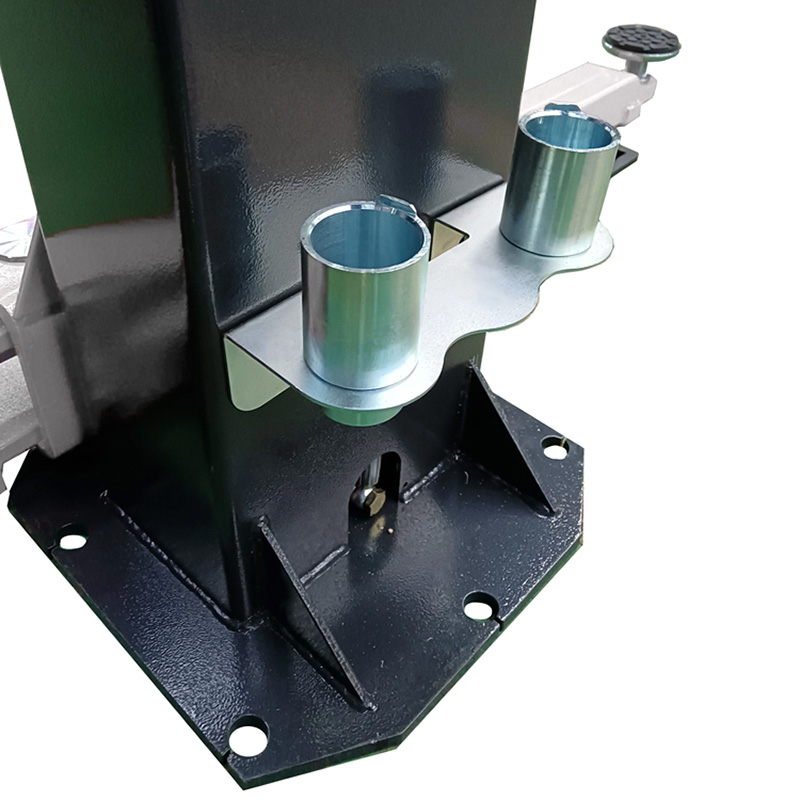

✅ Includes 4pc height extension kit
✅ Door protection
✅ 2 stage screw pads

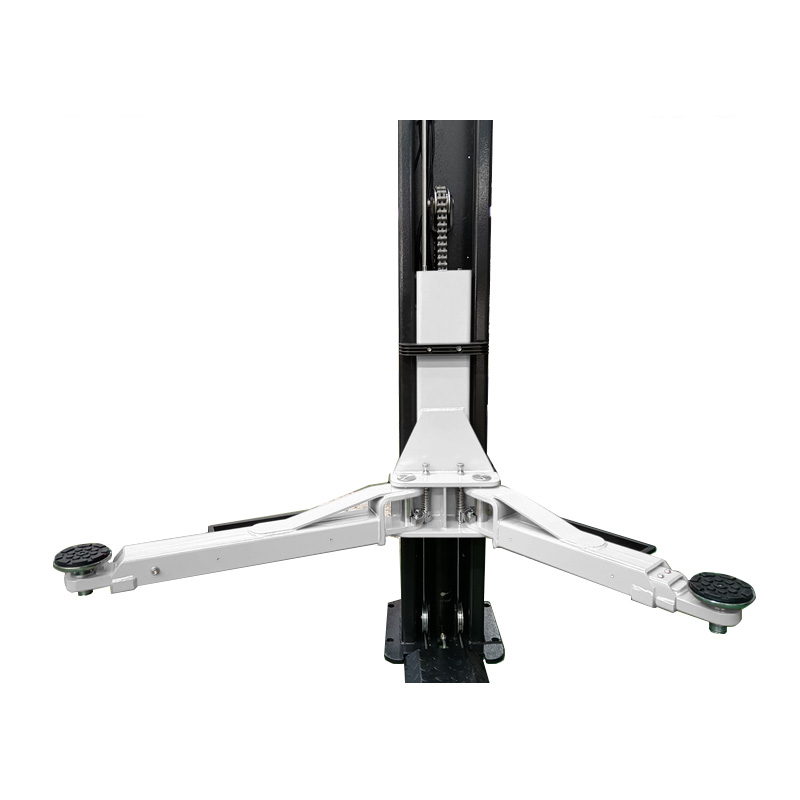

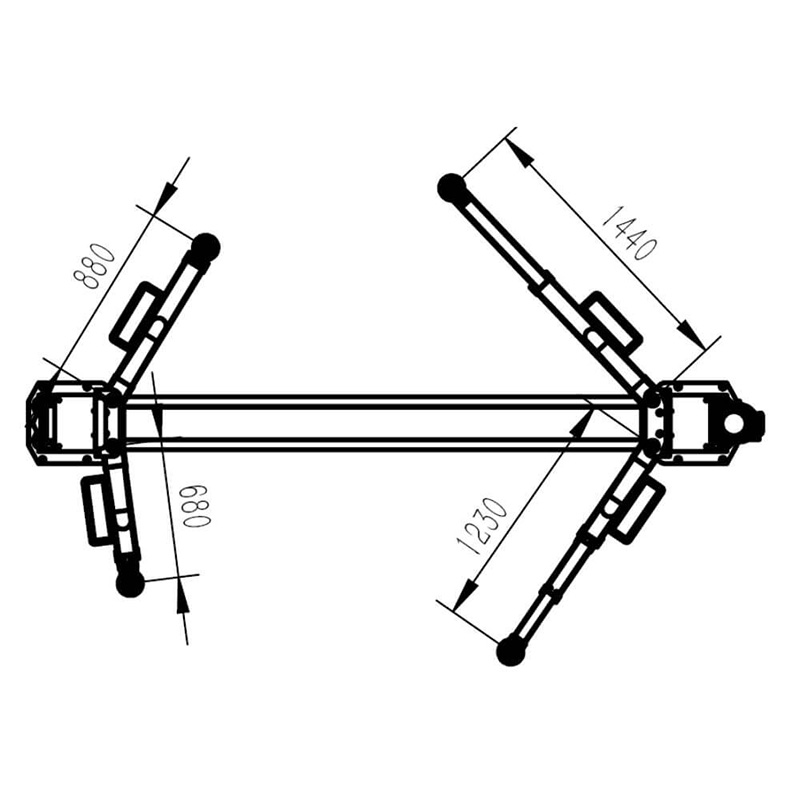

✅ 2 x 3 stage arms 680-1230mm
✅ 2 x 2 stage arms 880-1440mm
✅ Surface blasting process, electrostatic powder spraying
✅ Strong surface adhesion and durable powder coating

---

• Homologated and certified product according to the European Directive EN1493:1998+A1:2008
• Electro-hydraulic driven lift with chain lifting system
• Synchronization of cylinders independent from load distribution with cable leveling system
• Mechanical safeties in each post with automatic engagement
• Automatic lock release
• Double screw up pads
• Voluntary driven control

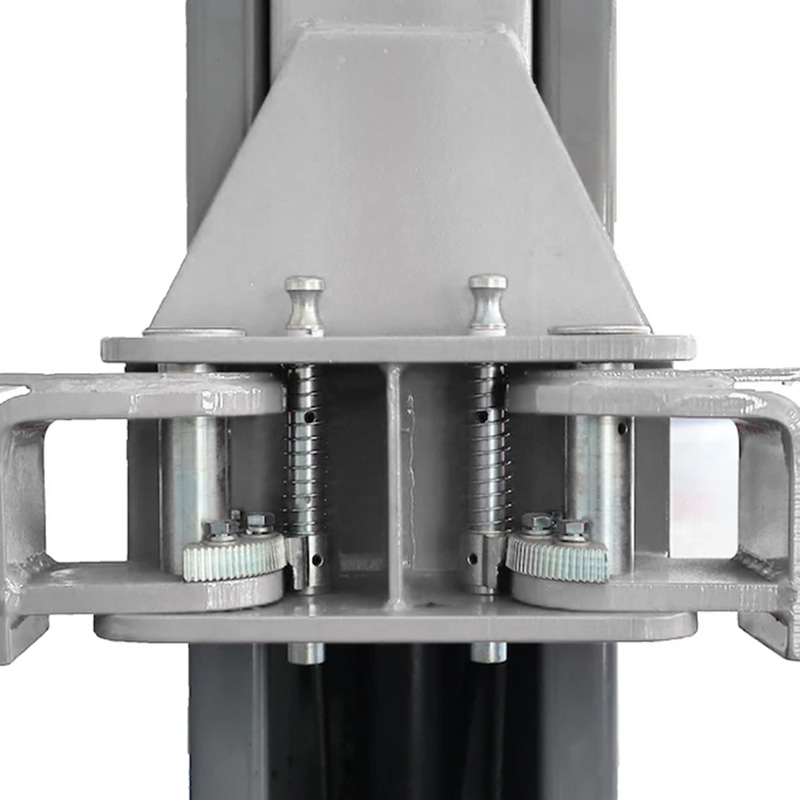

• Automatic arm locking
• Overload valves / Parachute valves
• Lowering speed control
• Automatic stop at maximum lifting height
• "Dead man" operation by 24V push button

---

• Lifting capacity - 4000kg
• Max lifting height - 1900mm
• Min height - 115mm
• Overall height - 2824mm
• Lifting time - 45 seconds
• Lowering time - 50 seconds
• Electric supply - 230V
• Motor power - 2.2kw
• Weight 580kg

---
