AccuTrack / Balco 4 Wheel Laser Wheel Aligner

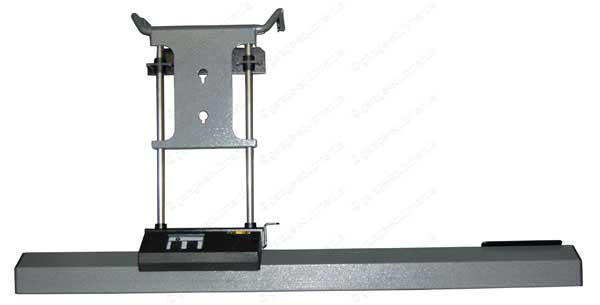

AccuTrack / Balco Front Laser Head
AccuTrack / Balco Rear Hanger
AccuTrack / Balco Front Cover

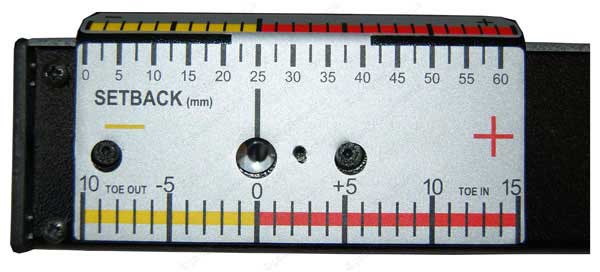

AccuTrack / Balco Toe and Setback Scale

A2000 Laser Wheel Aligner

Email
The Accu-Track / Balco 4 wheel laser alignment system is a highly profitable and valuable tool that is a must for any garage in the business of vehicle servicing or tyres. Individual front and rear toe, rear thrust line, set back and steering wheel position can all be achieved in just a matter of minutes.
The unit is designed to ensure that it is able to cover the vast majority of vehicles in the market, including rims from 12 inches to 23 inches.
inc. VAT € 2,767.50
€ 2,250.00
Price / kg:

Features

  • Fits rims from 12" - 23"
  • Easy mount clamps
  • Alloy friendly clamp contact
  • Automatic head charge on docking station
  • Continual operation up to 8 hours
  • Turning discs included
  • Steering wheel clamp included
  • Brake pedal depressor included
  • Extensions for vans, 4x4's and lowered vehicles
  • Optional electronic camber / caster gauge available

Specifications

  • Total toe - 20mm
  • Toe in - 30mm
  • Individual toe - 10mm
  • Setback up to 60mm
  • Rim diameter - 10" - 23"
  • Max tyre diameter - 35"
  • Wheelbase - 1500 - 4000mm
  • Track width - 1000 - 2500mm
  • Power - 230V
  • Battery type - Nickel cadmium 4.8V 600mA
  • Recharge lift - 1000 cycles min
  • Usage - 10 hours continuous
  • Laser - 635nm 1mw maximum output, class 2

Video

Downloads

Accu-Track Laser Aligner Brochure
